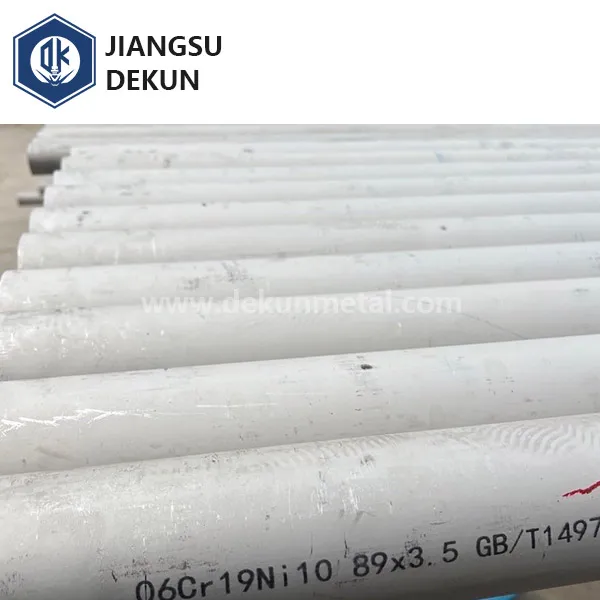

304 Hot-rolled Stainless Steel Tube

Size

。6.01219，0.5100。，5.8、6、11.8、12、12.618。。

Process

Seamless, Cold Drawn, Cold Rolled, Hot Rolled

End

Beveled End (BE), NPT, Butt Weld End (BW), Plain End (PE). Let's rearrange the given content to create a similar description:
The different types of ends commonly used in various piping systems are Butt Weld End (BW), Plain End (PE), Beveled End (BE), and NPT. These ends are designed to cater to different connection requirements in the piping industry.
Plain End (PE) refers to pipe ends that are cut square without any specific design or shaping. This type of end is commonly used for non-critical applications where a seamless connection is not required.
Beveled End (BE) is characterized by a sloping edge or angle on the pipe end. It is primarily used in situations where the pipes need to be joined by welding. The beveled end ensures a smooth transition and provides better weld penetration.
NPT stands for National Pipe Taper and is a common thread type used in the piping industry. Unlike the previous two types, NPT refers to the threading of the pipe rather than the physical end shape. NPT threads are tapered and used for creating a tight seal between threaded pipes.
Butt Weld End (BW) involves joining pipes by welding the ends together. This type of connection is commonly used for critical applications and high-pressure systems where a secure, leak-proof joint is required.
In summary, the different types of end connections in piping systems include Plain End (PE), Beveled End (BE), NPT threaded connections, and Butt Weld End (BW). Each end type has its own application based on factors such as connection method, system requirements, and pressure conditions.

Surface

Pickling, polishing, and brushing are essential processes for the treatment of pipes. These processes aim to remove scale and foreign iron particles that may contaminate the pipes. It is important to ensure that the pipes are free from any impurities to maintain their quality and functionality.
Typically, pickling, blasting, or surface finishing methods are used to achieve this goal. However, it is worth noting that these methods are not obligatory when the pipe has undergone a bright annealing process. Bright annealing is a heat treatment process that results in a bright and shiny surface finish, eliminating the need for additional surface treatments.
Therefore, if the pipe has been bright annealed, there is no mandatory requirement for pickling, blasting, or surface finishing. However, it is crucial to ensure that the pipe is free from scale and any external iron particles to maintain its overall cleanliness and performance.

Standard

There are various standards that define the specifications for seamless and welded pipes used in various industries. Some of the commonly adopted standards are ASTM A312, ASTM A213, EN10216-5, DIN 17456, DIN 17458, JIS G3459, JIS G3463.
These standards provide guidelines on the size, shape, thickness, and material composition of pipes used in different applications. They specify the various tests and inspection methods that need to be performed to ensure the quality and durability of the pipes.
Manufacturers and suppliers of pipes need to comply with these standards to ensure the safe and reliable operation of the pipes in various industries such as petrochemicals, pharmaceuticals, food processing, and power generation. These standards have been developed after extensive research and consultation with industry experts to ensure that the pipes meet the varying requirements of different applications.

Other Names

1.4301 Stainless Steel Seamless Pipe

S30400 Stainless Steel Seamless Pipe

X5CrNi18-10 Stainless Steel Seamless Pipe

Theoretical Weight(kg/m)

To calculate the weight per meter of a pipe, you need to know both the outer diameter (OD) and wall thickness (WT) in millimeters. The formula for this calculation is (OD-WT)*WT*0.02491. This formula takes the difference between the outer and inner diameters (which is equal to the wall thickness) and multiplies it by the wall thickness and a conversion factor of 0.02491. The resulting value is the weight per meter of the pipe.

Element

UNS S30400(304) %

C, max

0.08

Mn, max

2.00

P, max

0.045

S, max

0.030

Si, max

1.00

Ni

8.00-11.0

Cr

18.0-20.0

Alloy

Temper

Tensile Strength Min, psi (MPa)

Yield Strength, 0.2% Offset, min, psi (MPa)

Elongation in2 in. or 50mm (or 4D), min, %

UNS S30400

Solution Annealed

75 (515)

30 (205)

35

NPS Designator

Tolerance, % from Nominal

Over

Under

1/8 to 2-1/2 incl., all t/D ratios

20

12.5

3 to 18 inch., t/D up to 5% incl.

22.5

12.5

3 to 18 inch., t/D＞5%

15

12.5

20 and larger, welded, all t/D ratios

17.5

12.5

20 and larger, seamless, t/D up to 5% incl.

22.5

12.5

20 and larger, seamless, t/D＞5%

15

12.5

NPS Designator

Tolerances in Outside Diameter

Over

Under

in.

mm

in.

mm

1/8 to 1-1/2, incl

1/64 (0.015)

0.4

1/32 (0.031)

0.8

Over 1-1/2 to 4, incl

1/32 (0.031)

0.8

1/32 (0.031)

0.8

Over 4 to 8, incl

1/16 (0.062)

1.6

1/32 (0.031)

0.8

Over 8 to 18, incl

3/32 (0.093)

2.4

1/32 (0.031)

0.8

Over 18 to 26, incl

1/8 (0.125)

3.2

1/32 (0.031)

0.8

Over 26 to 34, incl

5/32 (0.156)

4

1/32 (0.031)

0.8

Over 34 to 48, incl

3/16 (0.187)

4.8

1/32 (0.031)

0.8

Specified OD, in.

Specified Wall Thickness, in.

Maximum Curvature in any 3ft, in.

Maximum Curvature i Total Length, in.

Up to 5.0 incl.

Over 3% OD to 0.5, incl.

0.03

0.010 x length, ft

Over 5.0 to 8.0, incl.

Over 4% OD to 0.75, incl.

0.045

0.015 x length, ft

Over 8.0 to 12.75, incl.

Over 4% OD to 1.0, incl.

0.06

0.020 x length, ft

Nominal Pipe Size

Outside Diameter

Nominal Wall Thickness

SCH5S

SCH10S

SCH40S/STD

SCH80S

1/8

10.3

--

1.24

1.73

2.41

1/4

13.7

--

1.65

2.24

3.02

3/8

17.1

--

1.65

2.31

3.20

1/2

21.3

1.65

2.11

2.77

3.73

3/4

26.7

1.65

2.11

2.87

3.91

1

33.4

1.65

2.77

3.38

4.55

1 1/4

42.2

1.65

2.77

3.56

4.85

1 1/2

48.3

1.65

2.77

3.68

5.08

2

60.3

1.65

2.77

3.91

5.54

2 1/2

73.0

2.11

3.05

5.16

7.01

3

88.9

2.11

3.05

5.49

7.62

3 1/2

101.6

2.11

3.05

5.74

8.08

4

114.3

2.11

3.05

6.02

8.56

5

141.3

2.77

3.40

6.55

9.53

6

168.3

2.77

3.40

7.11

10.97

8

219.1

2.77

3.76

8.18

12.70

10

273.1

3.4

4.19

9.27

12.70

12

323.9

3.96

4.57

9.53

12.70

14

355.6

3.96

4.78

9.53

--

16

406.4

4.19

4.78

9.53

--

18

457.2

4.19

4.78

9.53

--

20

508.0

4.78

5.54

9.53

--

22

558.8

4.78

5.54

9.53

--

24

609.6

5.54

6.35

9.53

--

Clients

Project

Specification

China Nuclear Industry 5 Construction Co., Ltd.

4# Regular Outdoor Neutralization Tank

ASTM A312 TP304 Pipe: 14*3mm, 45*3.5mm, 108*4mm, 13.7*2.2mm

Hengli Petrochemical (Dalian) Co., Ltd.

PTA First-period Project

ASTM A312 TP304 Pipe: 114.3*3.05mm, 168.3*3.4mm, 219.1*3.76mm, 406.4*4.78mm

Sinopec Mitsubishi Chemical Polycarbonate Co., Ltd.

BPA/PC Unit

ASTM A312 TP304 Pipe: 273*4.19mm, 610*6.35mm, 762*9.53mm, 864*9.53mm 75MT

Xianglu Petrochemical Co., Ltd.

PTA Second-period Project

ASTM A312 TP304 Tube: 406.4*26mm, 406.4*37mm, 457*42mm, 457*22mm

Hulunbeier New Gold Chemical Co., Ltd.

5080 Project

ASTM A312 TP304 Tube: 219.1*8.18mm, 219.1*3.76mm, 21.3*2.77mm, 114.3*3.05mm, 88.9*3.05mm, 1219.2*9.53mm

Sinpo Chemistry Co., Ltd.

VCM Project

ASTM A312 TP304 Pipe: 18*2.5mm, 76*4mm, 108*3mm, 193.7*7.9mm, 813*7.92mm

HQCEC

Jiangsu LNG Project

ASTM A312 TP304 Pipe: 219.1*3.76mm, 88.9*5.49mm, 914*12.7mm, 813*9.53mm, 1016*12.7mm, 1118*12.7mm

CNOOC Gas & Power Group

Tianjin LNG Project

ASTM A312 TP304 Pipe: 114.3*3.5mm, 60.3*2.77mm, 1067*12.7mm, 406.4*21.44mm

AL-Rashid Trading & Contracting Co., Ltd.

Project of Water Supply for Hail Villages-First Phrase

ASTM A312 TP304 Pipe: 219.08*8.18mm, 300MT

Wonil.T & I Co.,Ltd

Sempra Energy PJT

ASTM A312 TP304/304L Pipe: 12inch * Sch160S, 8inch * Sch120S

The Linde AG Group Selas Fluid Processing Corporation

PECO LNG Vaporizer Tubing Replacement

ASTM A312 TP304 Pipe: 1.25”* 0.083”, 2”* 0.083”, 1”* 0.065”* 39’

West Atlantic General Trading L.L.C

Sea Water Expansion & Handling Phase 1

ASTM A312 TP304 Pipe: 219.1*3.76*11800mm, 406.4*4.78*11800mm, 508*5.54*11800mm, 609.6*22.23*11800mm
